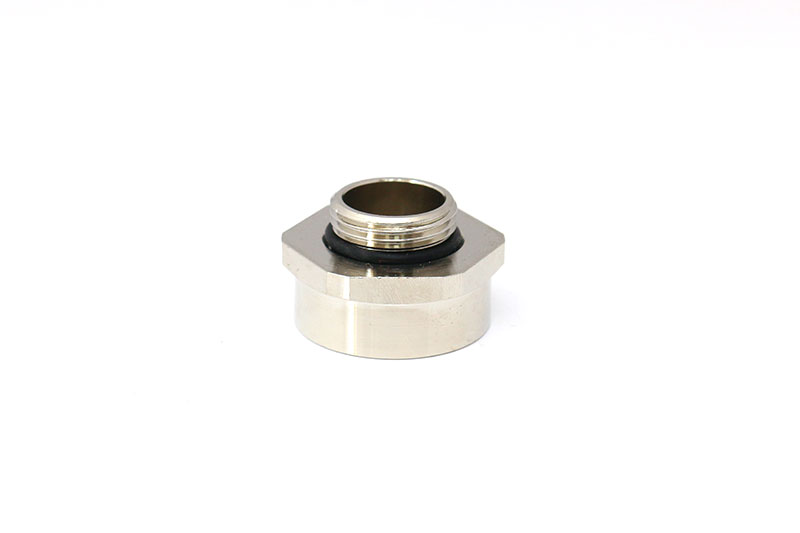

REM Series Metal Reducing Ring
Category: Metal Cable Gland

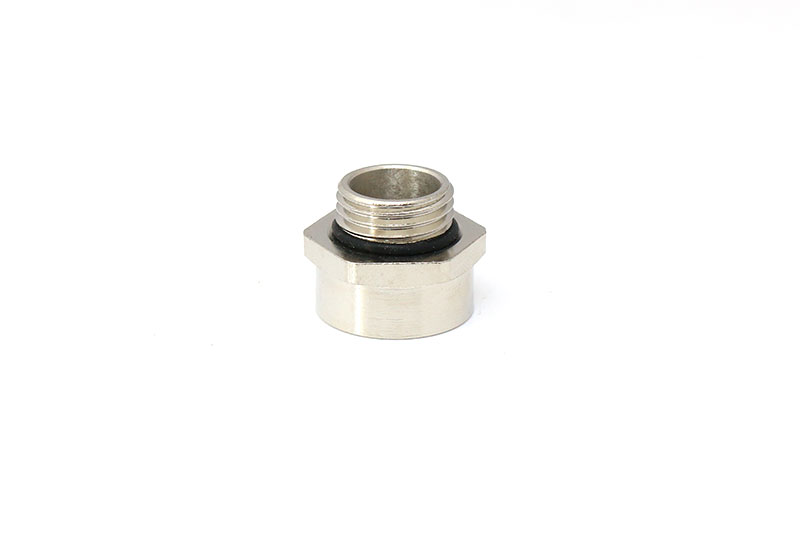

REM-Metal Reducing Ring
Product Overview
Material: brass nickel plated
Product features: More choices for conversion between different threads; length and other thread conversions can be customized as required
Structure Chart
Technical Parameter
REM-M/P Metric Thread To PG Thread
| Artice no. | Outer Thread | Inner Thread | Wrench size(mm) | L1(mm) | L(mm) | Style |
| REM-M16/P7 | M16*1.5 | PG7 | 18 | 7 | 10 | A |
| REM-M16/P9 | M16*1.5 | PG9 | 18 | 7 | 20 | B |
| REM-M16/P11 | M16*1.5 | PO11 | 22 | 7 | 20 | B |
| REM-M18/P11 | M18*1.5 | PG11 | 22 | 7 | 20 | B |
| REM-M18/P13.5 | M18*1.5 | PG13.5 | 24 | 7 | 20 | B |
| REM-M20/P11 | M20*1.5 | PG11 | 22 | 7 | 20 | B |
| REM-M20/P13.5 | M20*1.5 | PG13.5 | 24 | 7 | 20 | B |
| REM-M20/P16 | M20*1.5 | PG16 | 26 | 7 | 20 | B |
| REM-M25/P16 | M25*1.5 | PG16 | 28 | 7 | 21 | B |
| REM-M25/P21 | M25*1.5 | PG21 | 32 | 7 | 23 | B |
| REM-M27/P13.5 | M27*2.0 | PG13.5 | 30 | 8 | 12 | A |
| REM-M32/P16 | M32*1.5 | PO16 | 36 | 8 | 12 | A |
| REM-M32/P29 | M32*1.5 | PG29 | 40 | 8 | 24 | B |
| REM-M40/P29 | M40*1.5 | PG29 | 45 | 9 | 25 | B |
| REM-M40/P36 | M40*1.5 | PG36 | 50 | 9 | 28 | B |
| REM-M5O/P21 | M50*1.5 | PG21 | 55 | 9 | 14 | A |
| REM-M5O/P29 | M50*1.5 | PG29 | 55 | 9 | 14 | A |
REM-P/M PG Thread To Metric Thread
| Artice no. | Outer Thread | Inner Thread | Wrench size(mm) | L1(mm) | L(mm) | Style |
| REM-P9/M16 | PG9 | M16*1.5 | 20 | 7 | 20 | B |
| REM-P9/M20 | PG9 | M20*1.5 | 24 | 7 | 20 | B |
| REM-P11/M20 | PG11 | M20*1.5 | 24 | 7 | 20 | B |
| REM-P13.5/M20 | PG13.5 | M20*1.5 | 24 | 7 | 20 | B |
| REM-P16/M20 | PG16 | M20*1.5 | 26 | 7 | 20 | B |
| REM-P16/M25 | PG16 | M25*1.5 | 28 | 7 | 23 | B |
| REM-P21/M25 | PG21 | M25*1.5 | 32 | 7 | 23 | B |
| REM-P21/M32 | PG21 | M32*1.5 | 36 | 7 | 23 | B |
| REM-P21/M40 | PG21 | M40*1.5 | 45 | 7 | 26 | B |
| REM-P29/M40 | PG29 | M40*1.5 | 45 | 8 | 27 | B |
| REM-P36/M50 | PG36 | M50*1.5 | 55 | 9 | 28 | B |
| REM-P42/M63 | PG42 | M63*1.5 | 70 | 9 | 28.5 | B |

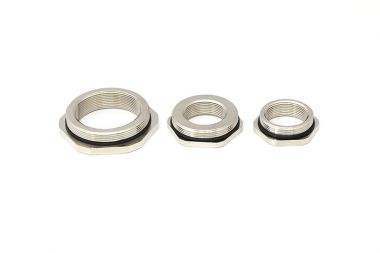

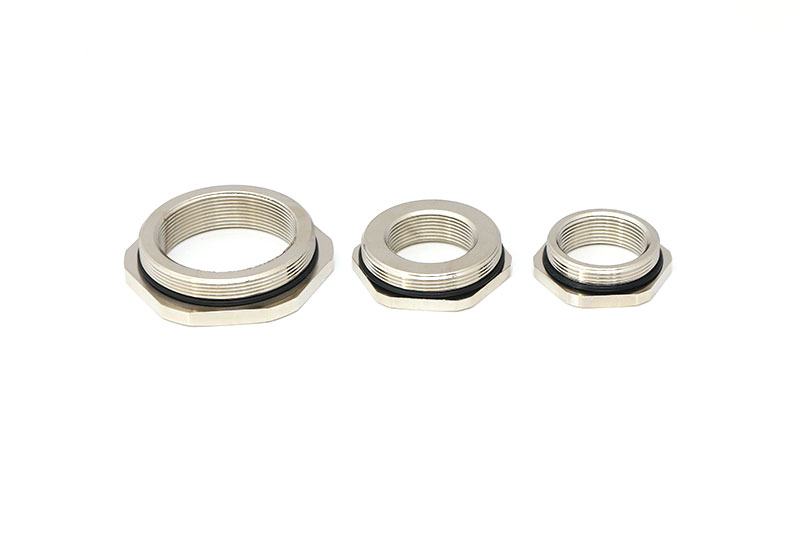

REM-Hexagonal Metal Reduction Ring
Product Overview
Material: brass nickel plated
Product features: More choices for conversion between different threads; length and other thread conversions can be customized as required
Structure Chart
Technical Parameter
REM-P PG Thread Reducer
| Artice no. | Outer Thread | Inner Thread | Wrench size(mm) | L1(mm) | L(mm) | Form |
| REM-P9/P7 | PG9 | PG7 | 18 | 7 | 10 | A |
| REM-P11/P9 | PG11 | PG9 | 20 | 9 | 13 | A |
| REM-P13.5/P11 | PG13.5 | PG11 | 24 | 7 | 10 | A |
| REM-P16/P13.5 | PG16 | PG13.5 | 24 | 7 | 10 | A |
| REM-P21/P16 | PG21 | PG16 | 30 | 9 | 13 | A |
| REM-P29/P21 | PG29 | PG21 | 40 | 8 | 12 | A |
| REM-P36/P29 | PG36 | PG29 | 50 | 9 | 14 | A |
| REM-P48/P42 | PG48 | PG42 | 65 | 10 | 15 | A |
REM-M Metric Thread Reducer
| Artice no. | Outer Thread | Inner Thread | Wrench size(mm) | L1(mm) | L(mm) | Form |
| REM-M16/M12 | M16*1.5 | M12*1.5 | 18 | 7 | 10 | A |
| REM-M18/M16 | M18*1.5 | M16*1.5 | 20 | 7 | 20 | B |
| REM-M20*M16 | M20*1.5 | M16*1.5 | 22 | 7.5 | 11 | A |
| REM-M20/M18 | M20*1.5 | M18*1.5 | 22 | 7 | 20 | B |
| REM-M25/M20 | M25*1.5 | M20*1.5 | 27 | 7 | 10.5 | A |
| REM-M27/M25 | M27*2.0 | M25*1.5 | 30 | 8 | 24 | B |
| REM-M30/M27 | M30*2.0 | M27*2.0 | 34 | 8 | 24 | B |
| REM-M32/M25 | M32*1.5 | M25*1.5 | 35 | 8 | 12 | A |
| REM-M40/M32 | M40*1.5 | M32*1.5 | 45 | 9 | 14 | A |
| REM-M40/M27 | M40*1.5 | M27*1.5 | 45 | 9 | 14 | A |
| REM-M40/M25 | M40*1.5 | M25*1.5 | 45 | 9 | 14 | A |
| REM-M50/M40 | M50*1.5 | M40*1.5 | 55 | 9 | 14 | A |
| REM-M50/M32 | M50*1.5 | M32*1.5 | 52 | 9 | 14 | A |
| REM-M63/M50 | M63*1.5 | M50*1.5 | 70 | 10 | 16 | A |
| REM-M63/M40 | M63*1.5 | M40*1.5 | 70 | 10 | 16 | A |

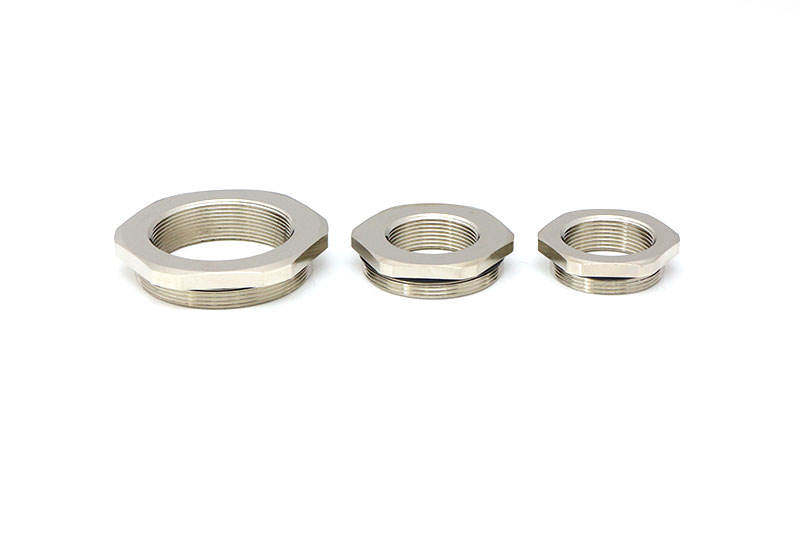

REM-Metal Expansion Ring
Product Overview
Material: brass nickel plated
Protection level: IP68
Structure Chart
Technical Parameter
REM-P PG Thread
| Artice no. | Outer Thread | Inner Thread | Wrench size(mm) | D(mm) | L1(mm) | L(mm) |
| REM-P7/P9 | PG7 | PG9 | 18 | 9 | 7 | 16 |
| REM-P9/P11 | PG9 | PG11 | 22 | 11.5 | 7 | 18 |
| REM-P9/P13.5 | PG9 | PG13.5 | 24 | 11.5 | 7 | 18 |
| REM-P11/P13.5 | PG11 | PG13.5 | 24 | 15 | 7 | 18 |
| REM-P11/P21 | PG11 | PG21 | 32 | 15 | 7 | 22 |
| REM-P13.5/P16 | PG13.5 | PG16 | 26 | 17 | 7 | 20 |
| REM-P13.5/P21 | PG13.5 | PG21 | 32 | 17 | 7 | 22 |
| REM-P16/P21 | PG16 | PG21 | 32 | 19 | 7 | 22 |
| REM-P21/P29 | PG21 | PG29 | 40 | 23 | 7 | 23 |
| REM-P29/P36 | PG29 | PG36 | 50 | 32.5 | 8 | 27.5 |
| REM-P36/P42 | PG36 | PG42 | 58 | 42.5 | 9 | 31 |
| REM-P42/P48 | PG42 | PG48 | 65 | 48 | 10 | 33 |
REM-M Metric Thread
| Artice no. | Outer Thread | Inner Thread | Wrench size(mm) | D(mm) | L1(mm) | L(mm) |
| REM-M12/M16 | M12*1.5 | M16*1.5 | 20 | 8 | 7 | 16 |
| REM-M16/M18 | M16*1.5 | M18*1.5 | 22 | 12 | 7 | 17 |
| REM-M16/M20 | M16*1.5 | M20*1.5 | 24 | 12 | 7 | 18 |
| REM-M18/M20 | M18*1.5 | M20*1.5 | 24 | 14 | 7 | 18 |
| REM-M20/M25 | M20*1.5 | M25*1.5 | 28 | 16 | 7 | 18 |
| REM-M25/M30 | M25*1.5 | M30*2.0 | 34 | 21 | 7 | 19 |
| REM-M25/M32 | M25*1.5 | M32*1.5 | 36 | 21 | 7 | 20 |
| REM-M30/M36 | M30*2.0 | M36*2.0 | 40 | 25 | 8 | 24 |
| REM-M32/M40 | M32*1.5 | M40*1.5 | 45 | 27 | 8 | 24 |
| REM-M36/M48 | M36*2.0 | M48*2.0 | 52 | 31 | 8 | 27 |
| REM-M40/M50 | M40*1.5 | M50*1.5 | 55 | 35 | 9 | 28 |
| REM-M50/M63 | M50*1.5 | M63*1.5 | 70 | 44 | 10 | 30 |
Product features: More choices for conversion between different threads; length and other thread conversions can be customized as required
