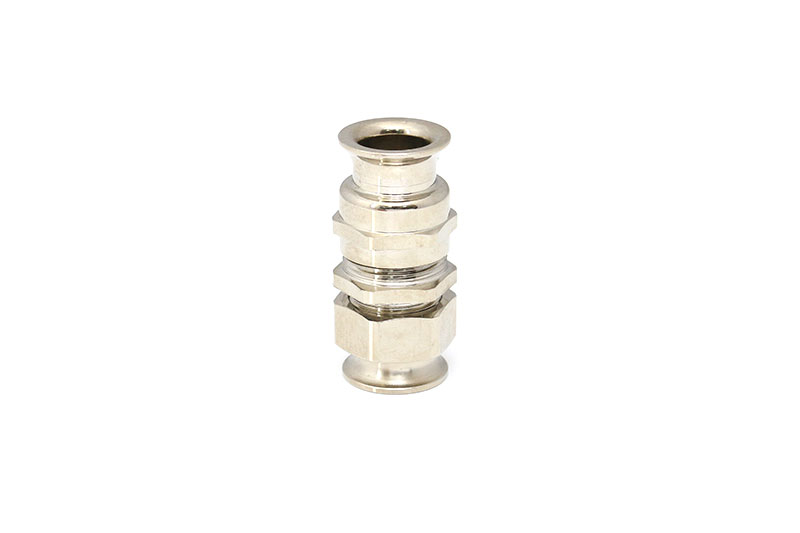

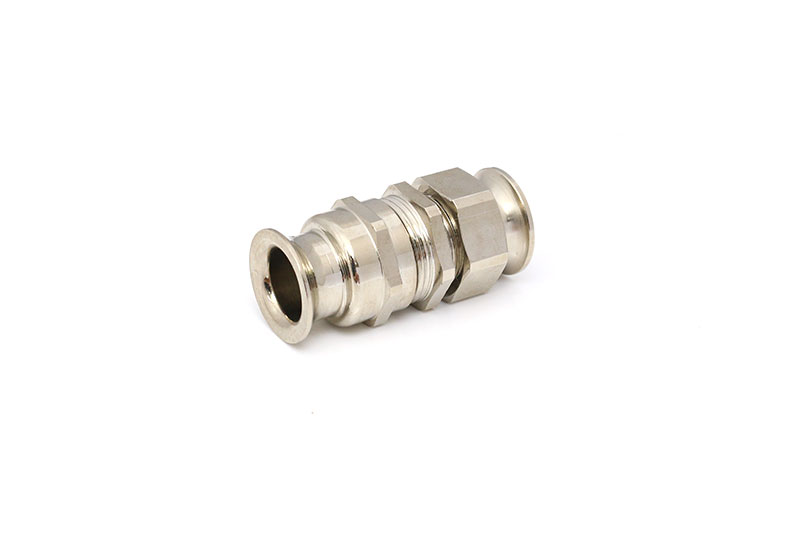

BL Series Flare cable connector
Category: Explosion-proof Grand Head
Product details
Product Overview
Material: Brass nickel-plated on the outer metal; nylon PA66 on the inner core sleeve; nitrile rubber seal
Protection level: within the specified range, use a suitable O-ring, the protection level can reach IP68
Temperature range: static: -40 ℃ to + 100 ℃, can reach + 120 ℃ in a short time
Dynamic: -20 ℃ to + 80 ℃, can reach + 100 ℃ in a short time
Note: The bell mouth cable connector is divided into single bell mouth and double bell mouth. The single bell mouth is a single-sided bell mouth and the other side is a hexagonal lock nut. The double bell mouth cable connector has bell mouths on both sides, which is more effective in protecting the cable.
Structure Chart
Technical Parameter
BL-M Metric Thread
| Artice no. | Thread Dimension(mm) | Clamping range(mm) | Thread AG(mm) | GL(mm) | Box aperture(mm) | SW |
| BL-M20 | M20*1.5 | 10-14 | 20 | 8 | 20.2 | 24 |
| BL-M25 | M25*1.5 | 10-14 | 25 | 8 | 25.2 | 28 |
| BL-M25 | M25*1.5 | 12-16 | 25 | 8 | 25.2 | 28 |
| BL-M25 | M25*1.5 | 13-18 | 25 | 8 | 25.2 | 28 |
| BL-M32 | M32*1.5 | 16-22 | 32 | 9 | 32.2 | 34 |
| BL-M32 | M32*1.5 | 18-25 | 32 | 10 | 32.2 | 40 |
| BL-M40 | M40*1.5 | 22-32 | 40 | 10 | 40.2 | 48 |
| BL-M50 | M50*1.5 | 32-38 | 50 | 11 | 50.2 | 57 |
| BL-M63 | M63*1.5 | 37-44 | 63 | 12 | 63.2 | 70 |
BL-P PG Thread
| Artice no. | Thread Dimension(mm) | Clamping range(mm) | Thread AG(mm) | GL(mm) | Box aperture(mm) | SW |
| BL-PG16 | PG16 | 10-14 | 22.5 | 8 | 22.7 | 30 |
| BL-PG21 | PG21 | 13-18 | 28.3 | 8 | 28.5 | 36 |
| BL-PG29 | PG29 | 18-25 | 37 | 9 | 37.2 | 48 |
| BL-PG36 | PG36 | 24-32 | 47 | 9 | 47.2 | 58 |
| BL-PG42 | PG42 | 32-38 | 54 | 10 | 54.2 | 67 |
| BL-PG48 | PG48 | 37-44 | 59.3 | 10 | 59.5 | 72 |
