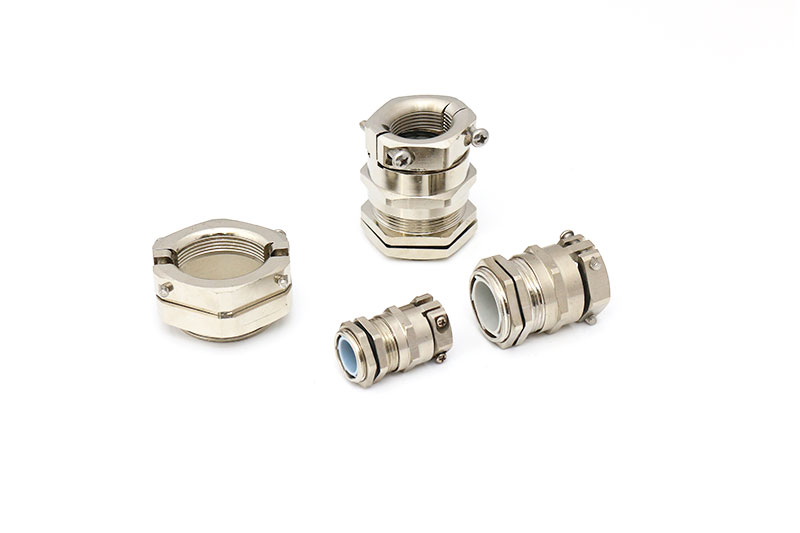

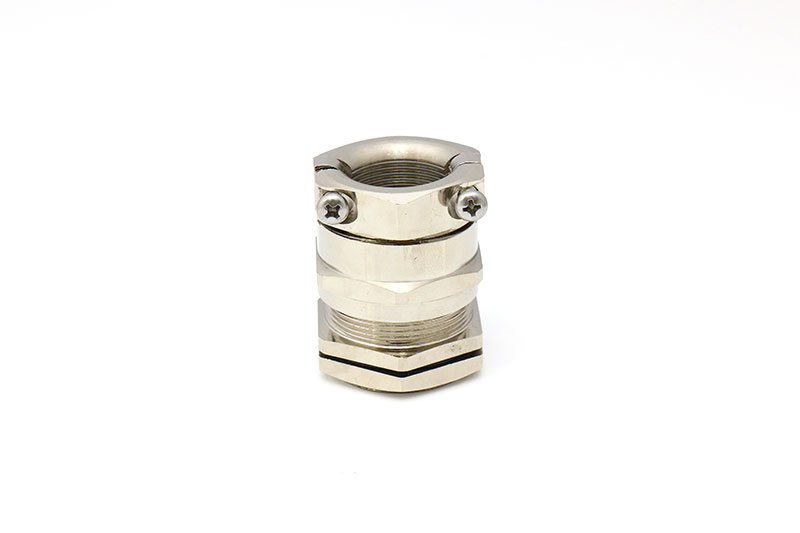

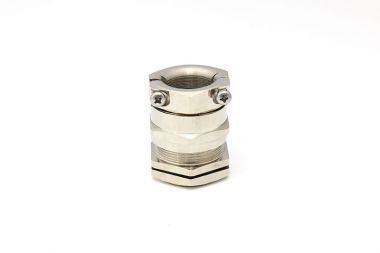

DHSM Series Double-lock Metal Cable G
Category: Metal Cable Gland
Product details
Product Overview
Material: Brass nickel-plated on the outer metal; nylon PA66 on the inner core; modified rubber on the seal
Protection level: within the specified bayonet range, using an appropriate O-ring, the protection level can reach IP68
Temperature range: static: -40 ℃ to + 100 ℃, can reach + 120 ℃ in a short time
Dynamic: -20 ℃ to + 80 ℃, can reach + 100 ℃ in a short time
Application occasions: occasions with special requirements for cable tensile strength, such as power supply line, shipbuilding, instrumentation, coal mine engineering and automation engineering
Structure Chart
Technical Parameter
DHSM-M Metric Thread
| Artice no. | Thread Dimension(mm) | Clamping range(mm) | Thread AG(mm) | GL(mm) | H(mm) | Wrench size(mm) | Packet units |
| DHSM-M12 | M12*1.5 | 3～6.5 | 12 | 5 | 26 | 14 | 50 |
| DHSM-M16-H | M16*1.5 | 3～6.5 | 16 | 6 | 26 | 14/18 | 50 |
| DHSM-M16 | M16*1.5 | 4～8 | 16 | 6 | 28 | 17/18 | 50 |
| DHSM-M16-D | M16*1.5 | 5～10 | 16 | 6 | 30 | 20 | 25 |
| DHSM-M18 | M18*1.5 | 5～10 | 18 | 6 | 30 | 20 | 25 |
| DHSM-M20-H | M20*1.5 | 5～10 | 20 | 7 | 30 | 20/22 | 25 |
| DHSM-M20 | M20*1.5 | 6～12 | 20 | 7 | 30.5 | 22 | 25 |
| DHSM-M20-D | M20*1.5 | 8～14 | 20 | 7 | 30.5 | 24 | 25 |
| DHSM-M24-H | M24*1.5 | 6～12 | 24 | 7 | 30.5 | 22/27 | 25 |
| DHSM-M24 | M24*1.5 | 8～14 | 24 | 7 | 30.5 | 24/27 | 25 |
| DHSM-M25-H | M25*1.5 | 8～14 | 25 | 7 | 30.5 | 24/28 | 25 |
| DHSM-M25 | M25*1.5 | 10～16 | 25 | 7 | 34.5 | 28 | 25 |
| DHSM-M25-D | M25*1.5 | 13～18 | 25 | 7 | 36 | 30 | 25 |
| DHSM-M27-H | M27*2.0 | 11～16 | 27 | 8 | 34.5 | 30 | 25 |
| DHSM-M27 | M27*2.0 | 13～18 | 27 | 8 | 36 | 30 | 25 |
| DHSM-M30-H | M30*2.0 | 13～18 | 30 | 8 | 34.5 | 30/34 | 25 |
| DHSM-M30 | M30*2.0 | 13～18 | 30 | 8 | 36 | 30/34 | 25 |
| DHSM-M32-H | M32*1.5 | 13～18 | 32 | 8 | 34.5 | 30/36 | 20 |
| DHSM-M32 | M32*1.5 | 15～22 | 32 | 8 | 36 | 36 | 20 |
| DHSM-M32-D | M32*1.5 | 18～25 | 32 | 8 | 38 | 40 | 20 |
| DHSM-M36-H | M36*2.0 | 18～25 | 36 | 8 | 43 | 36/40 | 20 |
| DHSM-M36 | M36*2.0 | 15～22 | 36 | 8 | 43 | 40 | 20 |
| DHSM-M40-H | M40*1.5 | 18～25 | 40 | 9 | 38 | 40/45 | 10 |
| DHSM-M40 | M40*1.5 | 21～30 | 40 | 9 | 43 | 45 | 10 |
| DHSM-M40-D | M40*1.5 | 22～32 | 40 | 9 | 43 | 50 | 10 |
| DHSM-M42 | M42*2.0 | 22～32 | 42 | 9 | 43 | 50 | 10 |
| DHSM-M48 | M48*2.0 | 22～32 | 48 | 9 | 48 | 50/55 | 5 |
| DHSM-M50 | M50*1.5 | 30～38 | 50 | 9 | 50 | 55/58 | 5 |
| DHSM-M63 | M63*1.5 | 37～44 | 63 | 10 | 50 | 65/70 | 5 |
| DHSM-M63-D | M63*1.5 | 42～53 | 63 | 10 | 52 | 75 | 5 |
